Sound Through Form
Its name, inspired by the mythical robot Hephaestus created to guard the Greek island of Crete.
Features

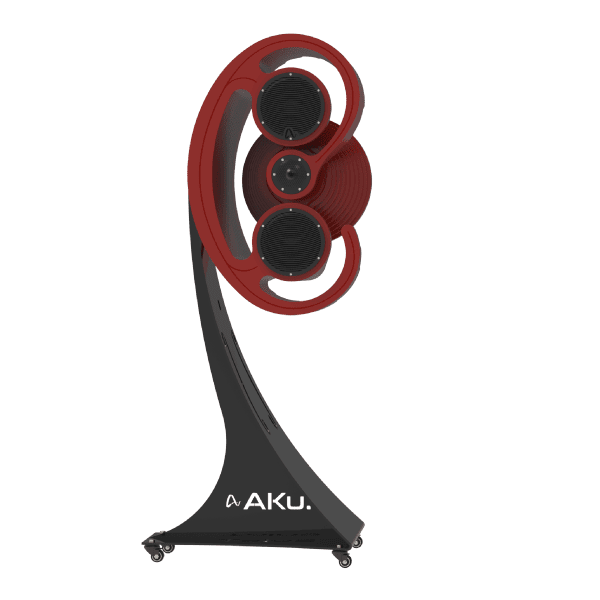

A matched pair of paper/Nylon Fibre cone 7” midrange drivers with symmetrical drive motor.
High-excursion Beryllium dome 1.34” tweeter with neodymium magnet motor.
High precision 6mm steel laser cut stand. Suspension for high dampening of speaker cabin vibration. Low vibration rubber wheels.
Ultra-linear 12” aluminum subwoofer in tapered chamber.
38mm MDF stacked plate construction. Tapered cylinder closed chambers design. Rubber-Aluminium dampening lining. Sheep’s wool for energy absorption.
Metal chassis Neutrik® Speakon 8-pole connector with EMI protection.
Integrated amplification system with DSP, 6 amplifiers, 2200W total power, silent active cooling, digital-analog inputs & 3 listening presets.
LOADING
CHOOSE YOUR COLOR IN 3D CADMIUM RED
IVORY BLACK

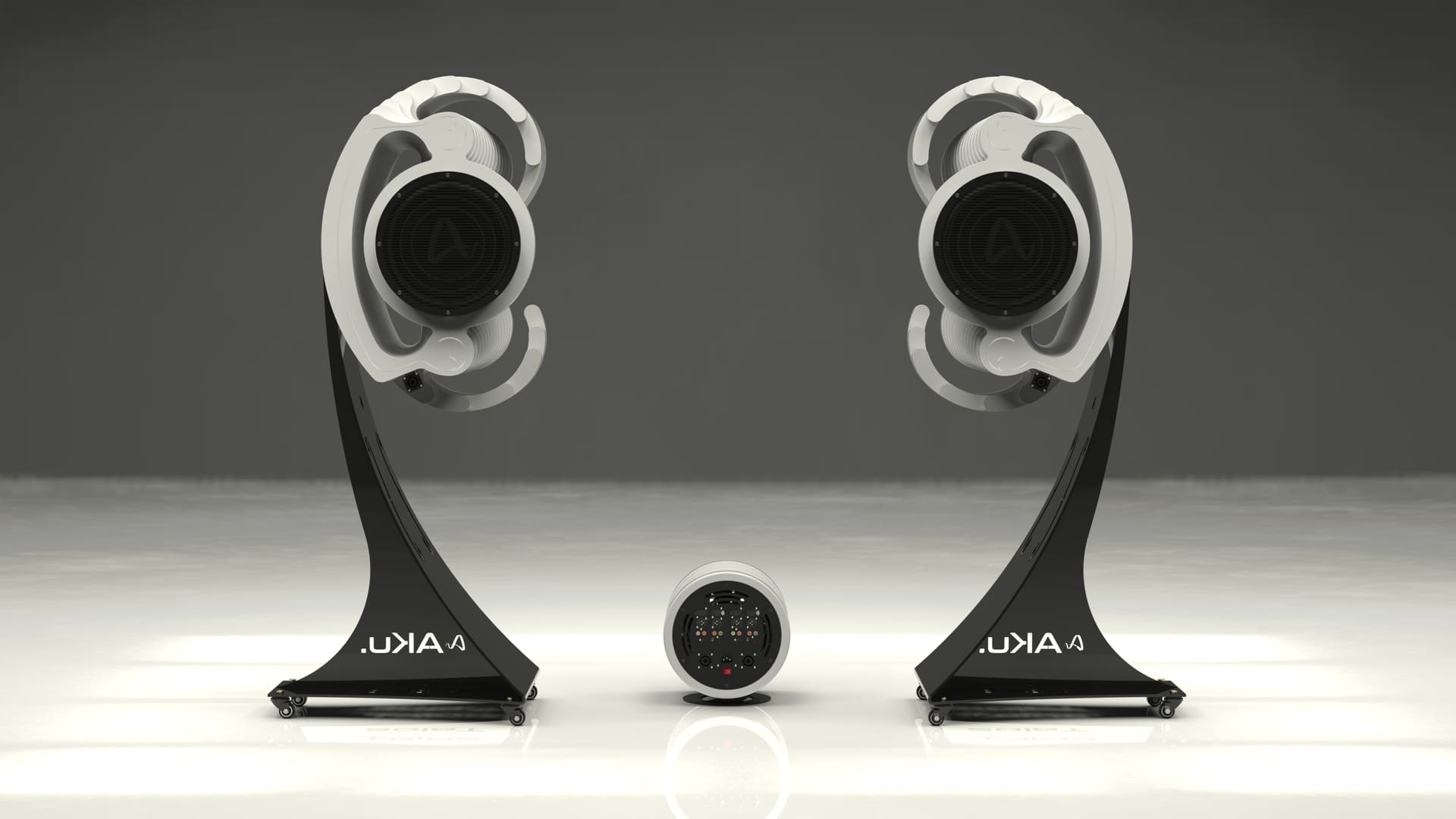

TITANIUM WHITE
KARMIN RED
Technical Specifications
System

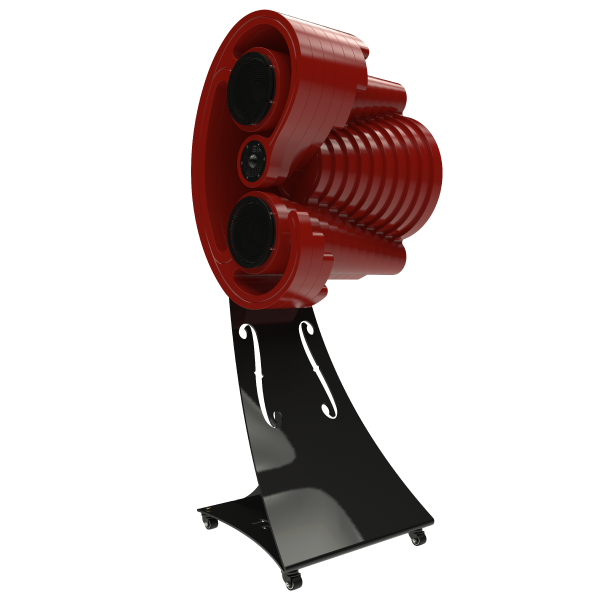

- Active 3-way, 4 chamber, floor stander with multi-layered proprietary body construction. Amplitude, time & phase aligned.
- Nonplanar internal surfaces.
- Minimal Vibration mdf composite design.
- Tapered mid & bass chambers.
Driver Composition

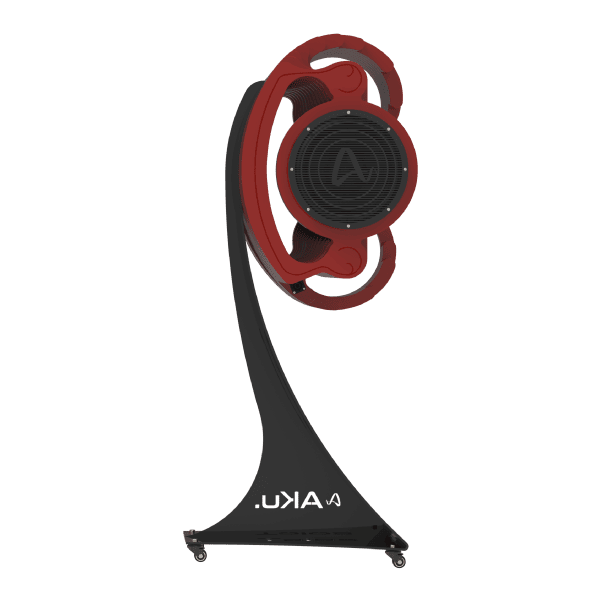

- Bass section: one 12″ aluminum, high-excursion subwoofer on rubber/aluminum decoupling rings.
- Midrange section: two 7″ air dried paper/Nylon Fibre Cone midrange units with symmetrical drive motor and Die-cast alu. chassis on rubber/aluminum decoupling rings.
- Treble section: one 1,34″ Beryllium dome, neo motor high-excursion tweeter with high power handling, low distortion & cross point. Mounted via aluminum decoupling rings.
Frequency Response
33Hz – 22000Hz @ +-1.5dB
25Hz – 35000Hz (-10dB)
SPL
117dB
Stands
Solid steel stand, mounted with decouplers to the main speaker body and heavy-duty rubber-steel wheels for floor contact
Amplification & DSP
- AKu-Hypex Ncore 6-channel amplifier with DSP plus Digital and Analog I/O
- Three DSP presets (Maximally Flat, Bass Contour, Party Mode)
- Bass: 2x500Watt
- Midrange: 2x500Watt
- Treble: 2x100Watt
- Frequency Response: 10Hz-50KHz
- SNR: 111dB
- Distortion (THD+N): -102.5dB
- Global Mains Voltage compatibility (100-240VAC)
- Efficiency: 92%
- Max Power Consumption: 2400W
- Power Connector: 3-pin IEC 250Vac, 10A male
- Neutrik XLR balanced inputs for Analog & AES
- Hypex Gold RCA unbalanced input for Analog & S/PDIF (up to 192KHz)
- Optical – Toslink input (up to 96KHz)
- metal Neutrik Speakon 8pole output
- OLED status screen
- Remote Control (input select/volume/preset switching/mute/standby)
- High-End AKM ADC/DACs
Dimensions
Loudspeaker
H:1400mm W:600mm D:565mm
H:55.11in W:23.62in D:22.24in

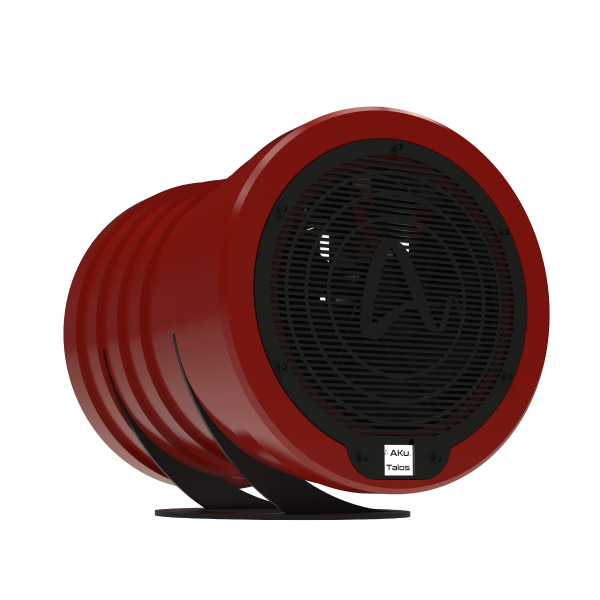

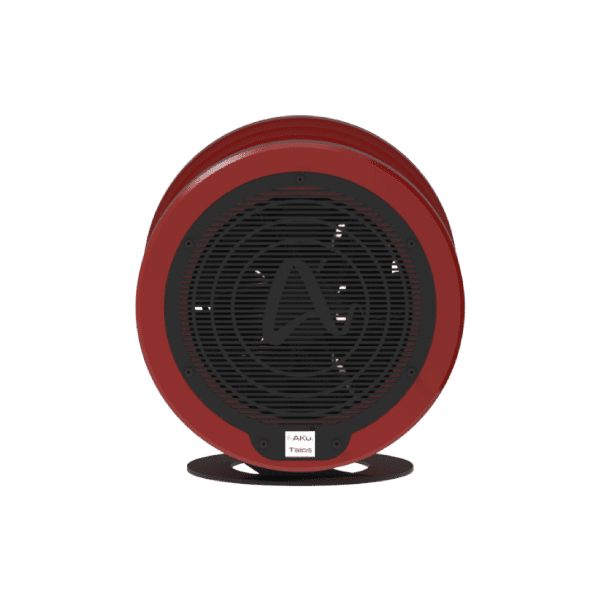

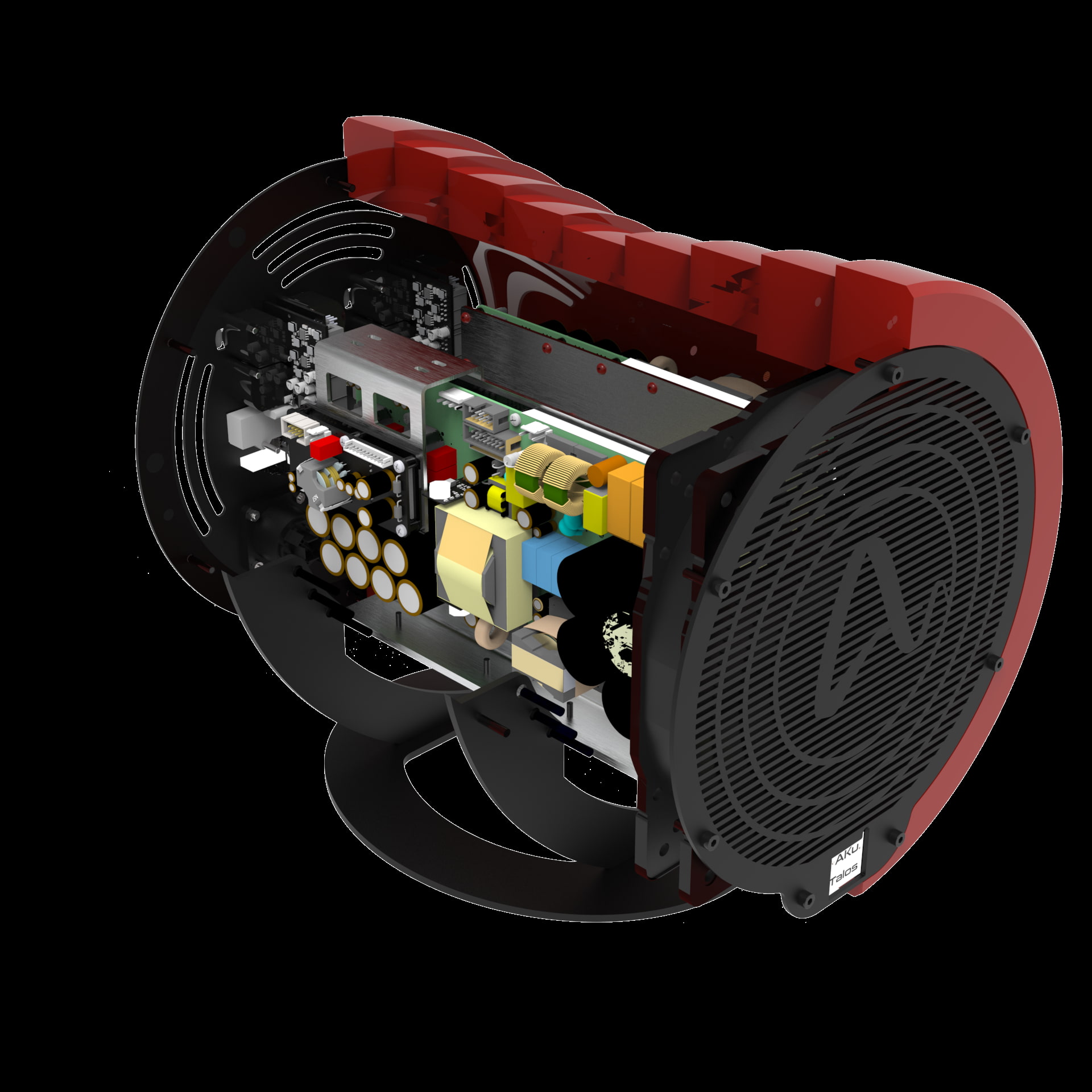

Amplifier-System Processor
H:320mm W:260mm D:350mm
H:12.59in W:10.23in D:13.78in
Weight
Loudspeaker: 96kg / 211,6lbs each
Amplifier-System Processor: Amplifier: 11.9kg / 26,23lbs
